The Maxisys MS909 is a 10-inch TFT-LCD screen with a high-resolution capacitive touch screen tablet. MaxiSYS MS909 has the Android 7.0 operating system and the comprehensive OE-level vehicle coverage, with an octa-core processor (2.3GHz Quad + 1.7GHz Quad) and 128GB of RAM. Its functions are mainly used for diagnostic guidance and testing components to confirm maintenance. The MS909 is equipped with a combination of VCI and vehicle communication tools -- MaxiFlash VCI -- to provide faster dual Wi-Fi vehicle and network communications. It also has front and rear cameras and a rechargeable lithium-ion battery that lasts up to eight hours.
|HARDWARE||Autel MSEILTE||Autel MS909||Autel MS919||Autel MSULTRA|
|Customer Rating||4.1 / 5||5 / 5||5 / 5||5 / 5|
|VEHICLE CONNECTION||MaxiFlash Elite & MaxiSYS VC-100||MaxiFlash VCI INCLUDING LATEST PROTOCOLS||MaxiFlash VCMI INCLUDING LATEST PROTOCOLS|
|COLOR SCREEN||9.7-INCH TOUCHSCREEN|
2048X1536DP1/LED COLOR SCREEN
1536×2048DPI/TFT-LCD ASAHI GLASS
2732×2048DPI/TFT-LCD ASAHI GLASS
|PROCESSOR||1.8GHz QUAD-CORE||2.3GHz+1.7GHz OCTA-CORE|
|MEMORY/RAM||64GB SSD/2GB RAM||128GB SSD/4GB RAM||256GB SSD/4GB RAM|
|BATTERY||13,600mAh||15,000 mAh,8 HOURS CONTINUOUS OPERATION||18,000 mAh,8 HOURS CONTINUOUS OPERATION|
|CAMERA||8MP||16MP REAR/5MP FRONT|
|OPERATING SYSTEM||ANDROID 4.4.4||ANDROID 7.0|
|SOFTWARE UPDATES||2Years FREE||1Year FREE|
|SPLIT SCREEN DISPLAY||VIEW MULTIPLE FUNCTIONS AT ONCE|
|ADVANCED VCMI 5-IN-1DEVICE||VCI,OSCILLOSCOPE,MULTIMETER, WAVEFORM GENERATOR,CAN BUS CHECK|
|REPAIR ASSIST||GUIDED PROCEDURES WITH DTC ANALYSIS & FAULT CODE SOLUTIONS|
|TOPOLOGY MODULE MAPPING||COLOR CODED ALL SYSTEM STATUS SCREEN ON SUPPORTED VEHICLES|
|RELEVANT CASES||DTC TROUBLESHOOTING||DTC TROUBLESHOOTING REPAIR TIPS VIDEO LIBRARY|
|TECHNICAL SERVICE BULETINS||AVAILABLE ON SELECT VEHICLES|
|VEHICLE DIAGNOSTICS||PASSENGER/LIGHT DUTY SOME MEDIUM DUTY|
|BASIC & SPECIAL FUNCTIONS||US,ASIAN & EUROPEAN|
1996 AND NEWER
|OBDII TEST MODES||ALL 10 TEST MODES LIVE & FREEZE FRAME/ENHANCED MODE 6|
|SERVICE RESETS||17+SERVICE FEATURES||26 SERVICE FEATURES|
|DIESEL PM||RESET DIESEL EMISSIONS LIGHT & MEDIUM DUTY VEHICLES|
|SYSTEM DIAGNOSTICS||ACCESS ALL MODULES IN ALLL SYSTEMS|
|COMPONENT ACTIVATIONS||BI-DIRECTIONAL CONTROL|
|ENHANCED FUNCTIONS||ADVANCED CODING +ADAPTATIONS|
The Maxisys MS909 combines diagnostics, service, extensive live data, channel coding, and ECU reflashing. The MS909 also has further programming options directly within the tool software itself. (focusing on BMW and Mercedes).
- Compatibility: it supplied with MaxiFlash VCI with Enhanced Protocol Compatability, which supports D-PDU, RP1210, CANFD. J2534 and DoIP protocols.
- All New Software Specialist Capabilities: Repair Assist, DTC Analysis, Topology Mapping, and Relevant Cases.
- Save Time: Quick boot-up time, view real-time data, and use bi-directional control while not being bound by a cord.
- Easy to Use：Even right out of the box, minimal setup was involved. Once the scan tool arrived in the shop ,it only needs to register the device on Autel’s website in order to perform updates. If you choose to not update it, you can use it out of the box within five minutes.”
- Good Use Experience:10 inch TFT-LCD touchscreen for swift diagnosis and optimum viewing. The touchscreen is resistant to dirt and oil and the hard rubber surface is treated with high-quality carbon fiber, making the surface texture more refined.
- Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Automatic system and software updates with real-time push message notifications via internet
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and error
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organize
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Repair Assistant - This Repair Assist Software displays a list of recommended tests, the completion status and priority for undertaking. Very simply, the higher the priority, the earlier the components should be tested.
- System Topology - With System Topology Software, the technician can see a colour coded topology display for all vehicle systems and their status on one page.The display shows the structure of communication between modules, and gives the ability to press on a system module to display any DTC's and access the system.
- DTC Analysis - The DTC Analysis describes possible causes and solutions for vehicle faults. Currently available on GM, Ford, Toyota, Lexus, Nissan, Honda, VW, Audi, BMW, FCA, Mercedes.
- Relevant Cases - The software automatically recommends repair processes that may be relevant to the vehicle and fault. These repair cases/suggestions provide the technician with great insight when diagnosing and repairing vehicle faults.
- Tech Services Bulletins - See official announcements issued by vehicle manufacturers regarding common problems including vehicle modules, DTCs, repair methods, program updates and recall stategies.
- Broad Vehicle Coverage: Autel MS909 features a long list of supported vehicles follows: BMW, Ford, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda, Toyota Lexus, Jaguar, Land Rover, Mercedes Benz, Hyundai, Kia, Volvo, JLR, and Porsche.
- More memory: 128GB Memory
- VCI interface with updated J2534 compatible with DoIP, MEGACAN, and more!
- Topology M Module Listing organizes and displays modules by communciation network
- Faster processor
- Does not include a docking station
- Does not include early OBD-II adapters!
- Android 7.0
- 1-year subscription with renewable warranty.
- Processor： Samsung Exynos 8895V octa-core Processor (2.3GHz Quad-core Mongoose + 1.7GHz Quad-core A53)
- Memory ：4GB RAM & 128GB On-board Memory
- Display： 9.7 inch TFT-LCD with 1536 x 2048 resolution & capacitive touchscreen
- Connectivity：WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO), BT v.2.1 + EDR, GPS ,USB 2.0 (Two USB HOST Type A, one USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
- Camera： Rear: 16 Megapixel, Autofocus with Flashlight, Front: 5 Megapixel
- Sensors： Gravity Accelerometer, Ambient Light Sensor (ALS)
- Audio Input/Output： Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
- Power and Battery：15000mAh 3.8 V lithium-polymer battery, Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
- Input Voltage： 12V/3A Adapter
- Operating Temp. ：0 to 50°C (32 to 122°F)
- Storage Temperature： -20 to 60°C (-4 to 140°F)
- Dimensions ：(WxHxD) 304.4 mm (11.98") x 227.8 mm (8.97") x 42.5 mm (1.67")
- Weight： 1.66kg (3.66lbs)

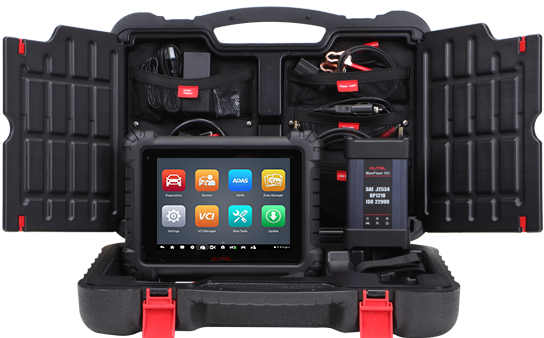

- 1 x Main Unit
- 1 x MaxiFlash VCI
- 1 x Main Cable V2.0
- 1 x USB 2.0 V2
- 1 x AC/DC Adaptor (12V)
- 1 x Cigarette Lighter
- 2 x Light Fuse
- 1 x Quick Reference Guide
- 1 x Packing List
- 1 x Soft Cloth
- 1 x Carrying Case
- Question: Does this model (909) come with bluetooth capability’s to connect via OBD2?
Answer: Yes, the J2534 VCI do connect via bluetooth.
- Question: is the maxiflash vci also the j2534 for pcm/ecu programming?
Answer: Yes, that is correct. The VCI may be connected to a computer through USB in order to use OE diagnostic and programming software.
