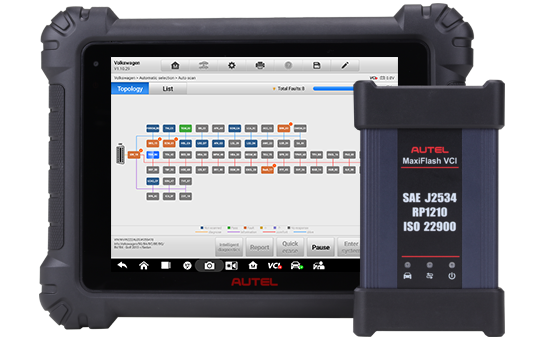

The Maxisys Ultra is a diagnostic tool with Android 7.0, it also features a 13-inch touchscreen tablet with an octa-core processor (2.3GHz quad-core + 1.7GHz quad-core), 256GB of built-in RAM, all of which support new split-screen multi-app navigation, diagnostic guidance and test kits to confirm repairs.
The all new MaxiSYS Ultra is the first diagnostic tool to be designed to match the growth of more complex automotive electrical systems and Electric Vehicles (EV) which are becoming ever more common place. MS Ultra provides the latest OE level coverage for most domestic and foreign vehicles, with advanced ECU coding and programming automatic system and software update.
|HARDWARE||Autel MSEILTE||Autel MS909||Autel MS919||Autel MSULTRA|
|Customer Rating||4.1 / 5||5 / 5||5 / 5||5 / 5|
|VEHICLE CONNECTION||MaxiFlash Elite & MaxiSYS VC-100||MaxiFlash VCI INCLUDING LATEST PROTOCOLS||MaxiFlash VCMI INCLUDING LATEST PROTOCOLS|
|COLOR SCREEN||9.7-INCH TOUCHSCREEN|
2048X1536DP1/LED COLOR SCREEN
1536×2048DPI/TFT-LCD ASAHI GLASS
2732×2048DPI/TFT-LCD ASAHI GLASS
|PROCESSOR||1.8GHz QUAD-CORE||2.3GHz+1.7GHz OCTA-CORE|
|MEMORY/RAM||64GB SSD/2GB RAM||128GB SSD/4GB RAM||256GB SSD/4GB RAM|
|BATTERY||13,600mAh||15,000 mAh,8 HOURS CONTINUOUS OPERATION||18,000 mAh,8 HOURS CONTINUOUS OPERATION|
|CAMERA||8MP||16MP REAR/5MP FRONT|
|OPERATING SYSTEM||ANDROID 4.4.4||ANDROID 7.0|
|SOFTWARE UPDATES||2Years FREE||1Year FREE|
|SPLIT SCREEN DISPLAY||VIEW MULTIPLE FUNCTIONS AT ONCE|
|ADVANCED VCMI 5-IN-1DEVICE||VCI,OSCILLOSCOPE,MULTIMETER, WAVEFORM GENERATOR,CAN BUS CHECK|
|REPAIR ASSIST||GUIDED PROCEDURES WITH DTC ANALYSIS & FAULT CODE SOLUTIONS|
|TOPOLOGY MODULE MAPPING||COLOR CODED ALL SYSTEM STATUS SCREEN ON SUPPORTED VEHICLES|
|RELEVANT CASES||DTC TROUBLESHOOTING||DTC TROUBLESHOOTING REPAIR TIPS VIDEO LIBRARY|
|TECHNICAL SERVICE BULETINS||AVAILABLE ON SELECT VEHICLES|
|VEHICLE DIAGNOSTICS||PASSENGER/LIGHT DUTY SOME MEDIUM DUTY|
|BASIC & SPECIAL FUNCTIONS||US,ASIAN & EUROPEAN|
1996 AND NEWER
|OBDII TEST MODES||ALL 10 TEST MODES LIVE & FREEZE FRAME/ENHANCED MODE 6|
|SERVICE RESETS||17+SERVICE FEATURES||26 SERVICE FEATURES|
|DIESEL PM||RESET DIESEL EMISSIONS LIGHT & MEDIUM DUTY VEHICLES|
|SYSTEM DIAGNOSTICS||ACCESS ALL MODULES IN ALLL SYSTEMS|
|COMPONENT ACTIVATIONS||BI-DIRECTIONAL CONTROL|
|ENHANCED FUNCTIONS||ADVANCED CODING +ADAPTATIONS|
The Ultra combines diagnostics, service, extensive live data, channel coding and ECU reflashing . New to the Ultra is our MaxiFLASH VCMI with built-in Oscillisope, Multimeter, Signal Generator and OBDC Bus Check Functions. The VCMI connects to the Ultra using hi-speed WiFi which greatly increases the communication speeds.
- Easy to Use: The Autel Ultra has a super large screen, our fastest processors, our largest ever SSD memory and even a docking station as standard.
- Full Function: includes outstanding coverage with 80+ manufacturers, full diagnostics, 26 service functions, channel coding and programming.
- Thoughtful Design: Android 7.0 with 13-inch TFT-LCD with 2732 x 2048 resolution & capacitive touchscreen tablet bring you excellent use experience.
- Step-by-step Guidance: Offering step-by-step repair guidance for technicians, ULTRA combines dynamic topology module mapping, enhanced automatic scanning capabilities, and intelligent diagnostic options.
- Oscilloscope - The 4 Channel Oscilloscope is faster with 20MHz Bandwidth, more accurate with 80MS/s sampling data rate, and a 32M memory buffer that stores more complex signals, zoom and replay.
- Waveform Generator - The Waveform Generator is used to test a sensor, an actuator, or an ECU without the need to replace them one by one to identify the fault. This is done by simulating signals of various sensors and ECUs, identifying hardware issues.
- Multimeter - The professional Multimeter will measure Voltage, Current, Resistance, Diode, Frequency/Period, Duty Cycle, Connectivity and Pulse Width.
- CAN Bus Check - The CAN Bus Check can quickly determine whether the OBD pins are functioning correctly.
- J2534, DoIP Bus, CAN-FD Bus, RP1210 and D-PDU - The Autel VCMI supplied with the Ultra and MS919 supports all the very latest communciation and application programming interface protocols.
- Autel updates provide latest OE level coverage for more than 80 US Domestic, Asian and European vehicles, including supercar
- Automatic system and software updates with real-time push message notifications via internet
- Exceptional OE-Level functionality from comprehensive OBDII diagnostics & services to advanced ECU coding and programming
- Cloud-based Data Manager saves customer and vehicle records, scanner data and technician notes
- Interactive Data Logging sessions enable direct contact with Autel Support for first-hand troubleshooting of diagnostic bugs and errors
- One-stop multitasking designed for ideal management of workshop operations to keep all data files, customer info, and vehicle records well organized
Currently available on BMW, Ford, Volkswagen, Audi, GM, Ford, Chrysler, Nissan, Honda, Toyota Lexus, Jaguar, Land Rover, Mercedes Benz, Hyundai, Kia, Volvo.
- Extended 2 years warranty
- 1-year Software free updates included
- 80+ Manufacturers
- Full diagnostics
- 26 Service Functions
- Channel coding and programming
- MaxiFlash VCMI included
- Built-In Oscilloscope
- Built-In Waveform Generator
- Built-In Multimeter
- Built-In CAN bus Check
- Connectivity :WiFix2 (802.11 a/b/g/n/ac 2x2 MIMO), BT v.2.1 + EDR, GPS, USB 2.0 (Two USB HOST Type A, one USB mini device), HDMI 2.0, SD Card (Support up to 256GB)
- Camera: Rear: 16 Megapixel, Autofocus with Flashlight, Front: 5 Megapixel
- Sensors: Gravity Accelerometer, Ambient Light Sensor (ALS)
- Audio Input/Output: Microphone, Dual Speakers, 3-Band 3.5 mm stereo/standard headset jack
- Power and Battery: 18000mAh 3.8 V lithium-polymer battery. Charging via 12 V AC/DC power supply with the temperature between 0°C and 45°C
- Input Voltage: 12V/3A Adapter
- Operating Temp.: 0 to 50°C (32 to 122°F)
- Storage Temperature: -20 to 60°C (-4 to 140°F)
- Dimensions (WxHxD) : 366.5 mm (14.43") x 280.9 mm (11.06") x 34 mm (1.34")
- Weight: 2.18kg (4.81 lb.)
- Main Unit
- Screen Protector
- Scope Test Leadx4
- Back-pinning Probe Replacement Needle x 20
- MaxiFlash VCMI
- Multimeter Test Lead x 2
- Small Crocodile Clip x2x2
- Docking Station
- Secondary Ignition Pickup x 2
- Large Dolphin Clip x2
- Main Cable V2.0
- TTENUATOR 20:1 x2
- Quick Reference Guide
- USB 2.0 Cable V2
- Breakout Lead 4x6
- Packing List
- AC/DC Adapter(12v)
- Multimeter Probe 1x2
- Soft Cloth
- Cigarette Lighter
- Flexible Back-pinning Probe 2x2
- Tool Box
- Light Fuse x2
- Back-pinning probe 1x5
- Carrying Case
- Clipper Cable
- Back-pinning Probe Screw x 2
- Question: Este escaner tiene para diferentes idiomas
Answer: yes support Spanish
- Question: cuantos anos de update tiene este escaner?
Answer: it's 2021 newest version
